🖼️ Epson QX-11 Motherboard Gallery

These high-resolution images were taken directly from a real Epson QX-11 unit.

Image	Description

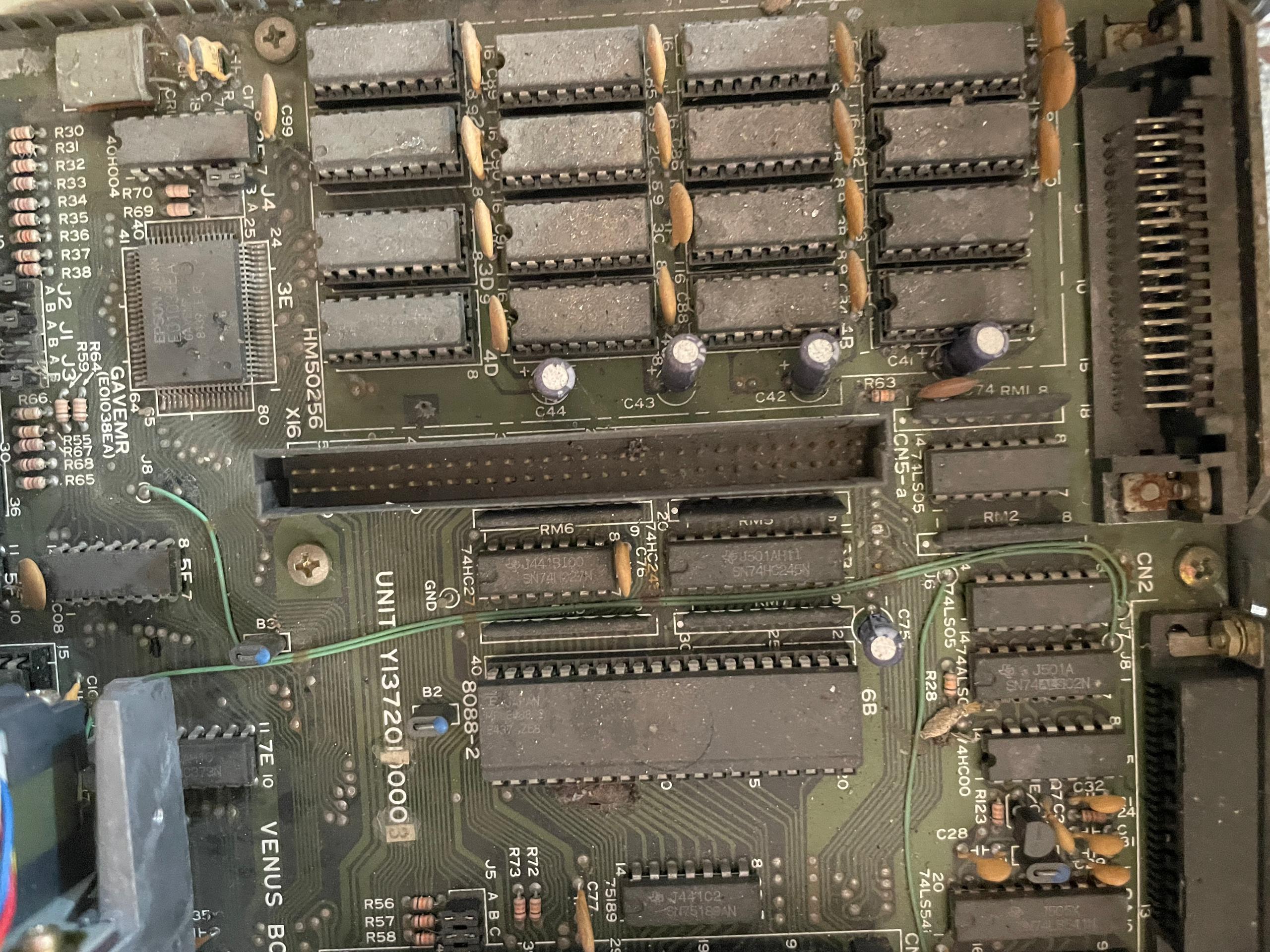

	MB CPU RAM Expansion slot

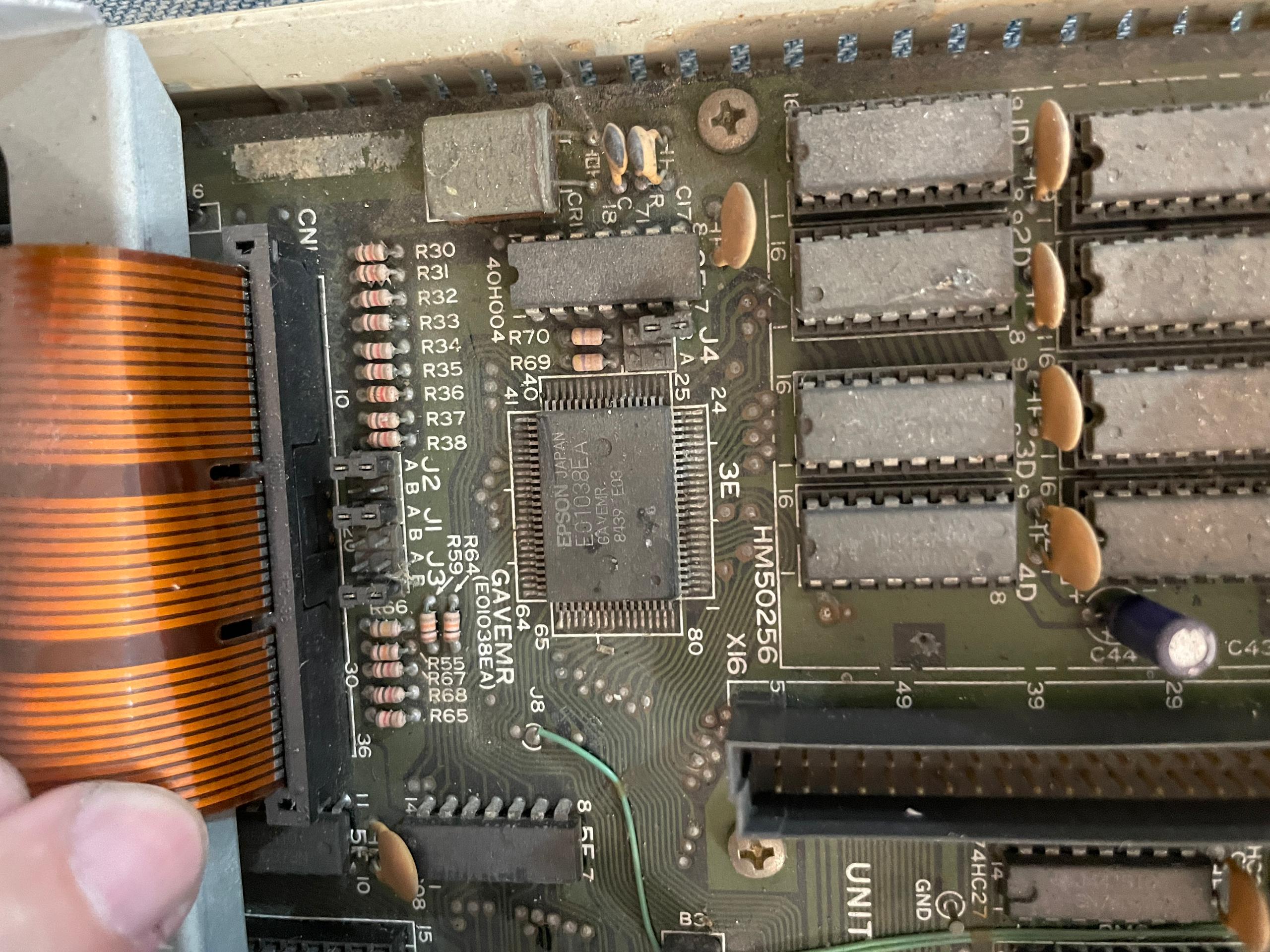

	MB GAVEMR RAM50256

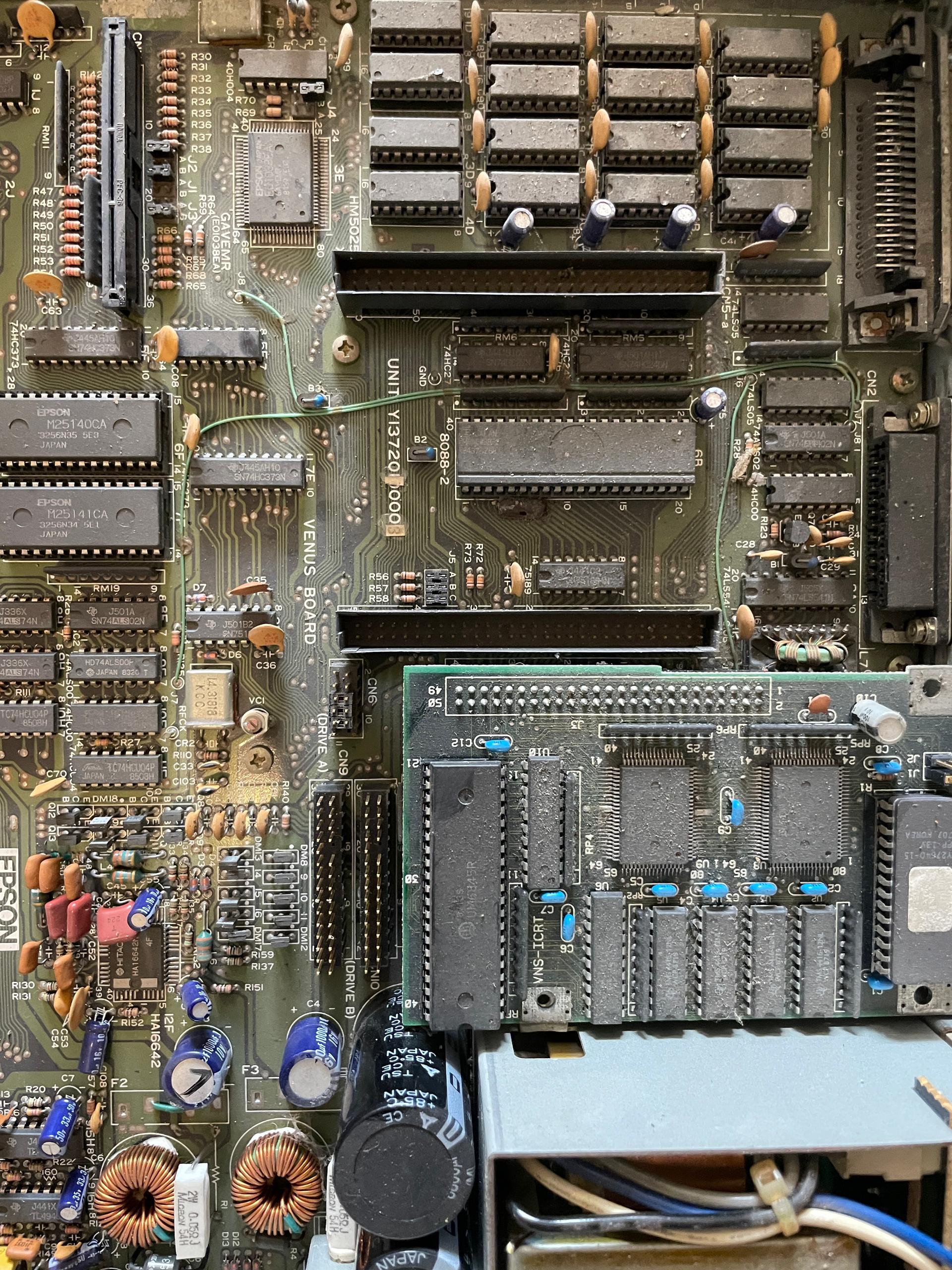

	MB TOP RAM CPU ICRT ROM PSU

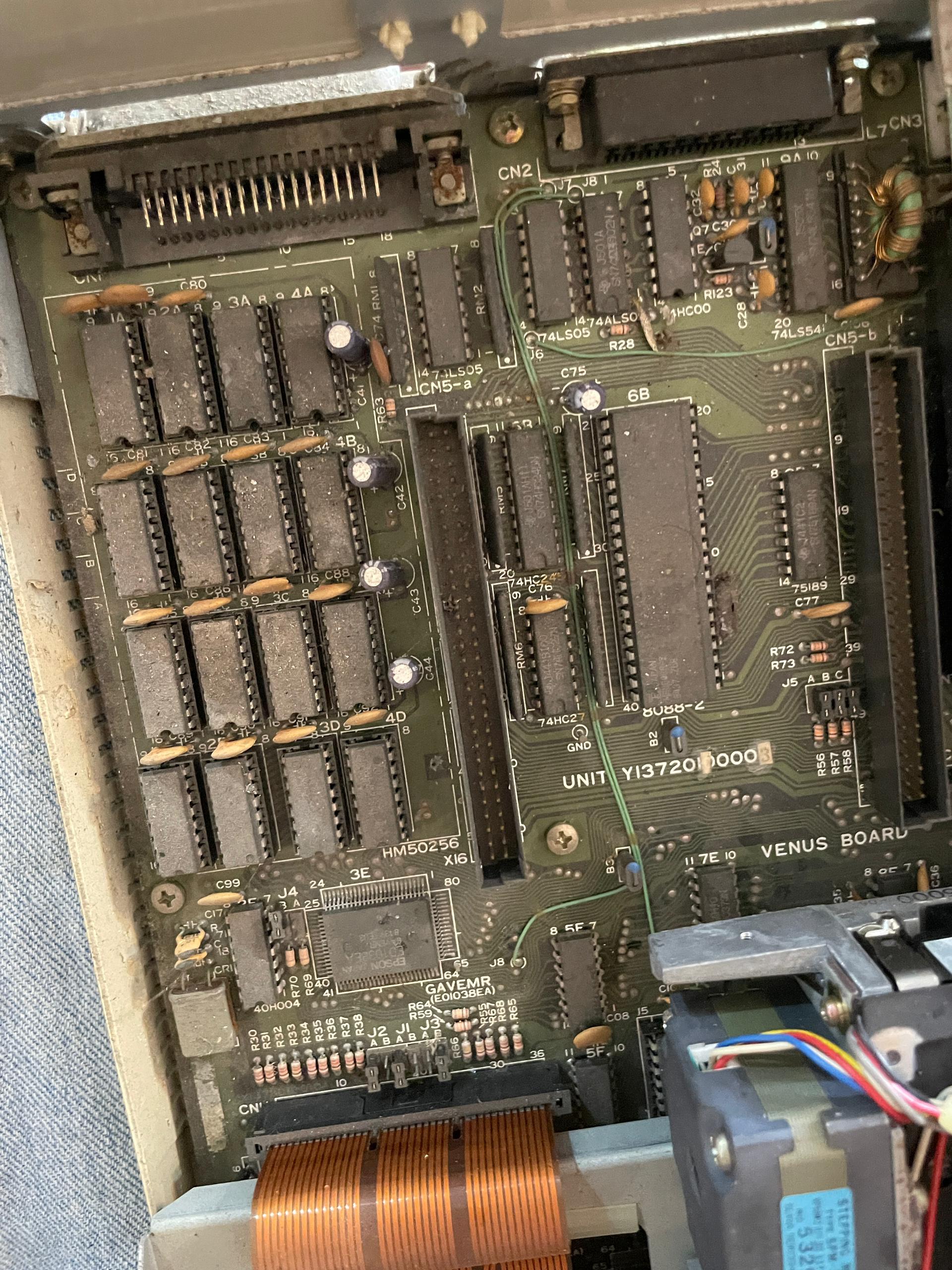

	MB CPU8088 512KBRAM Area

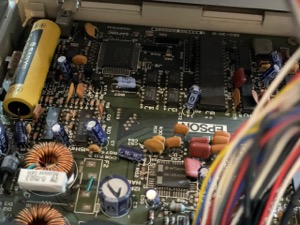

	MB HA16642 FDC Area

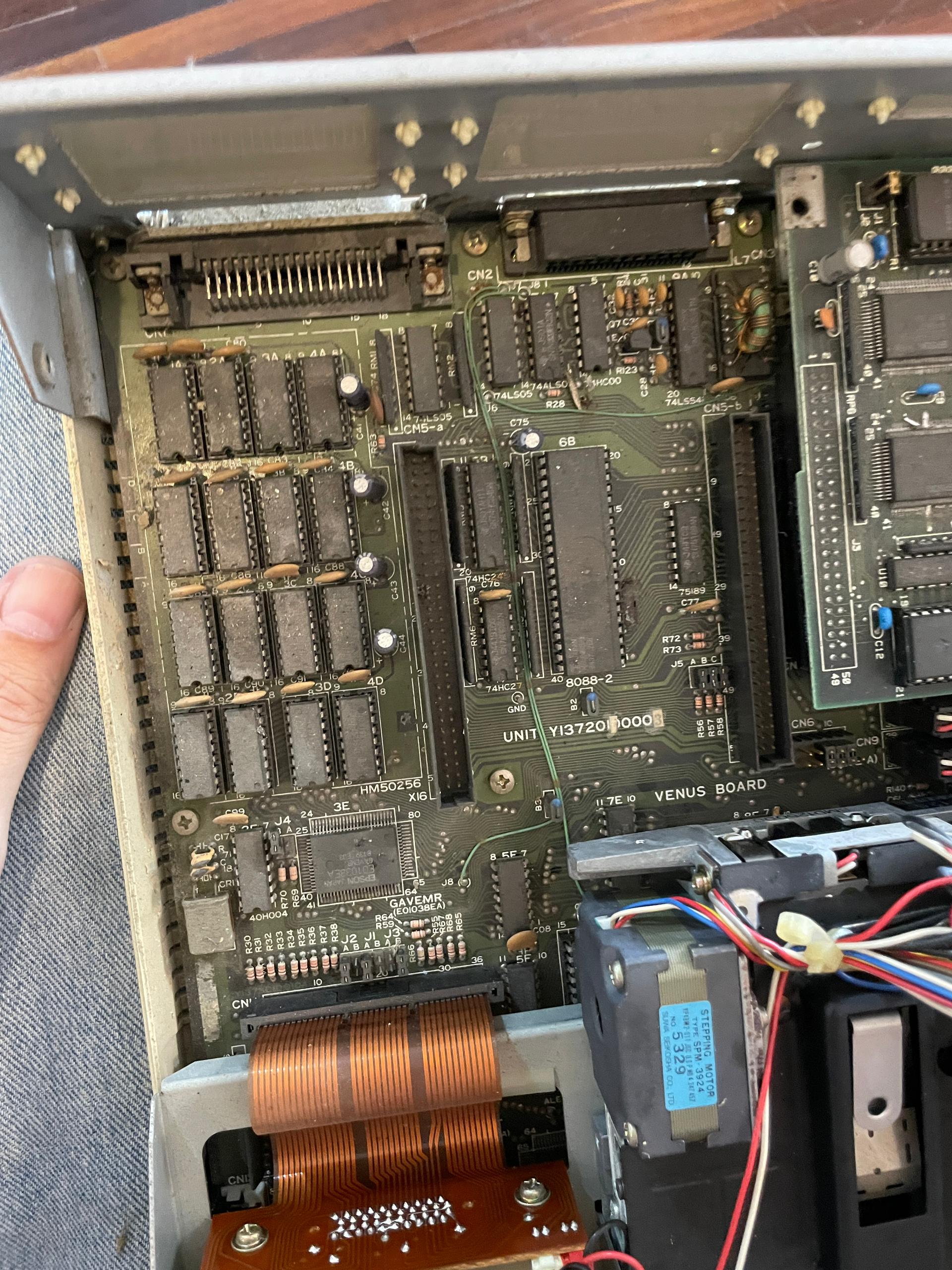

	MB RAM CPU ROM Cartridge

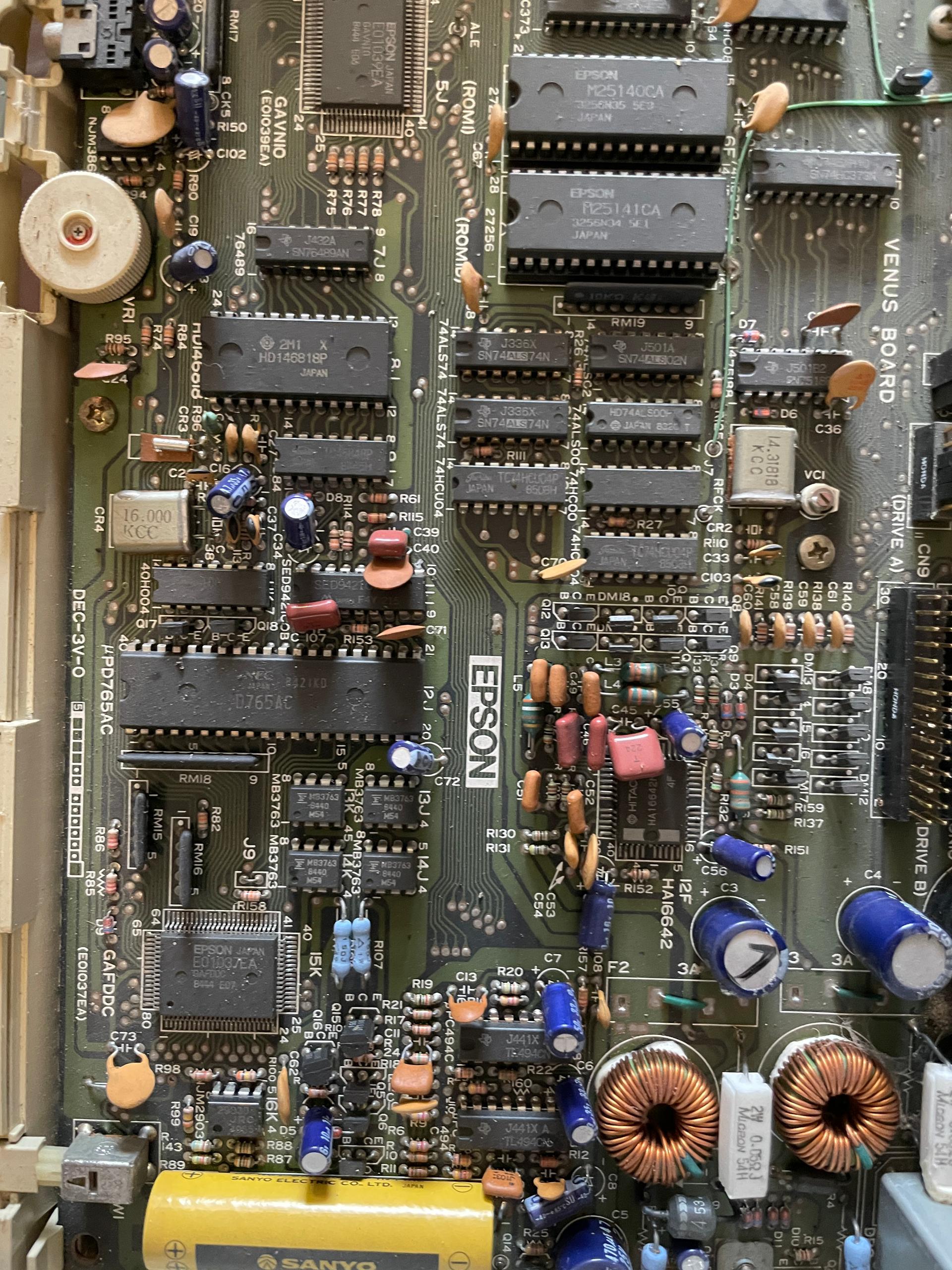

	MB FDC RTC Battery

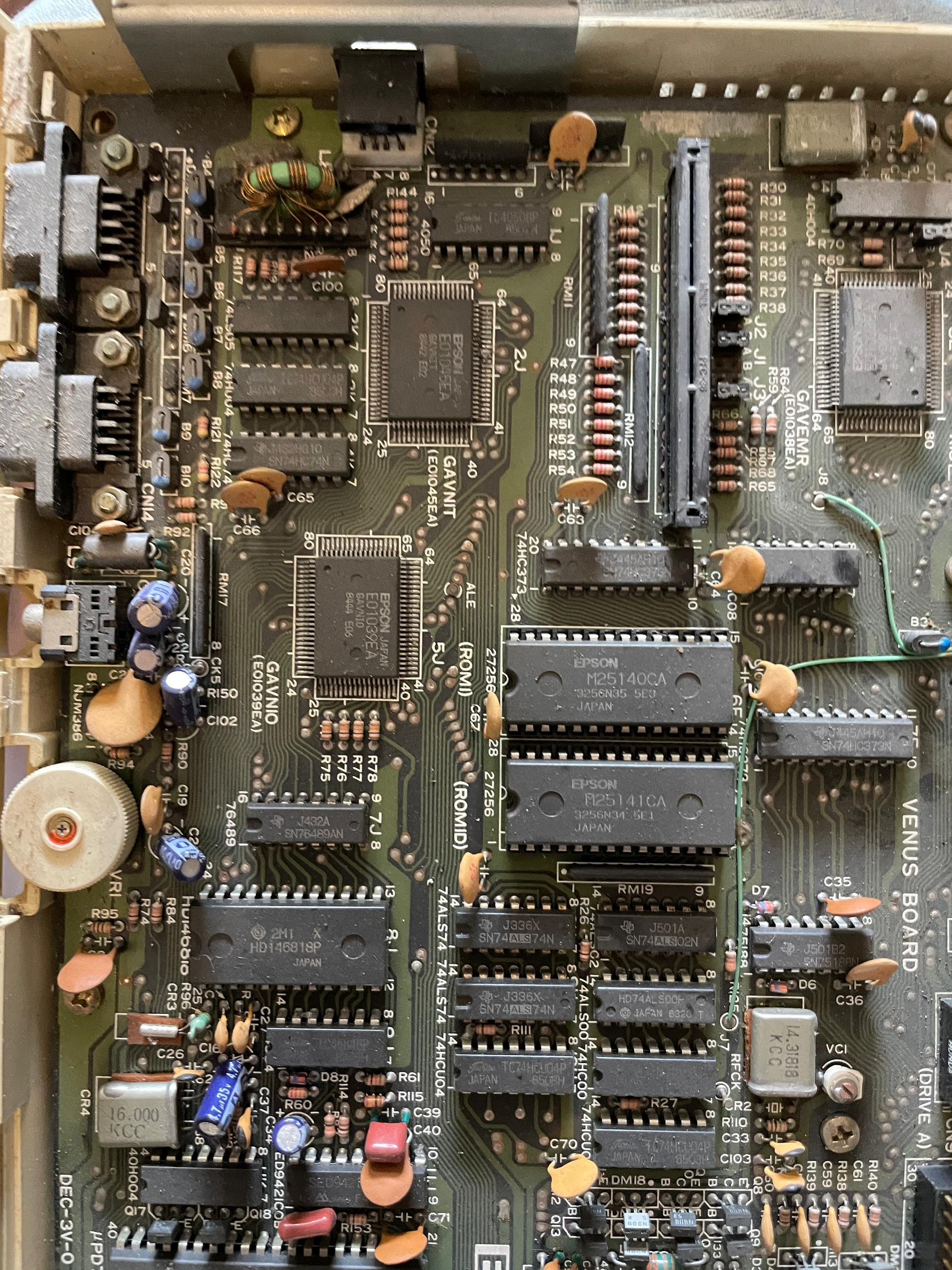

	MB ROM Gate Arrays RTC

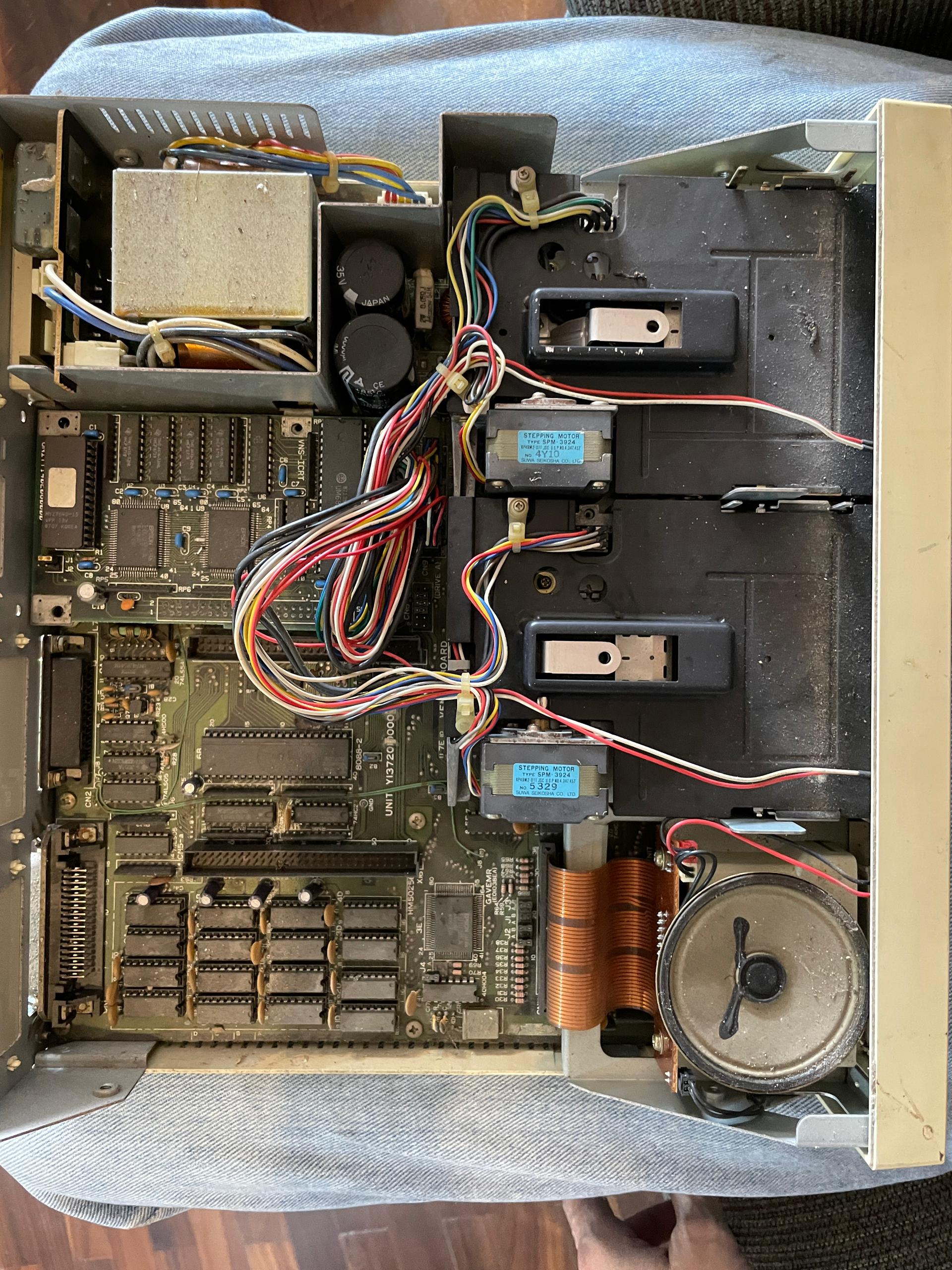

	MB Top View

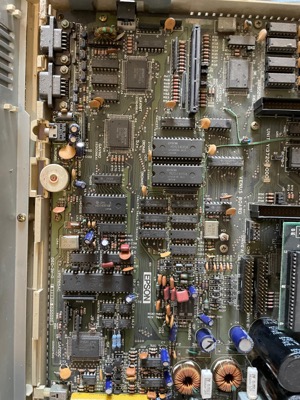

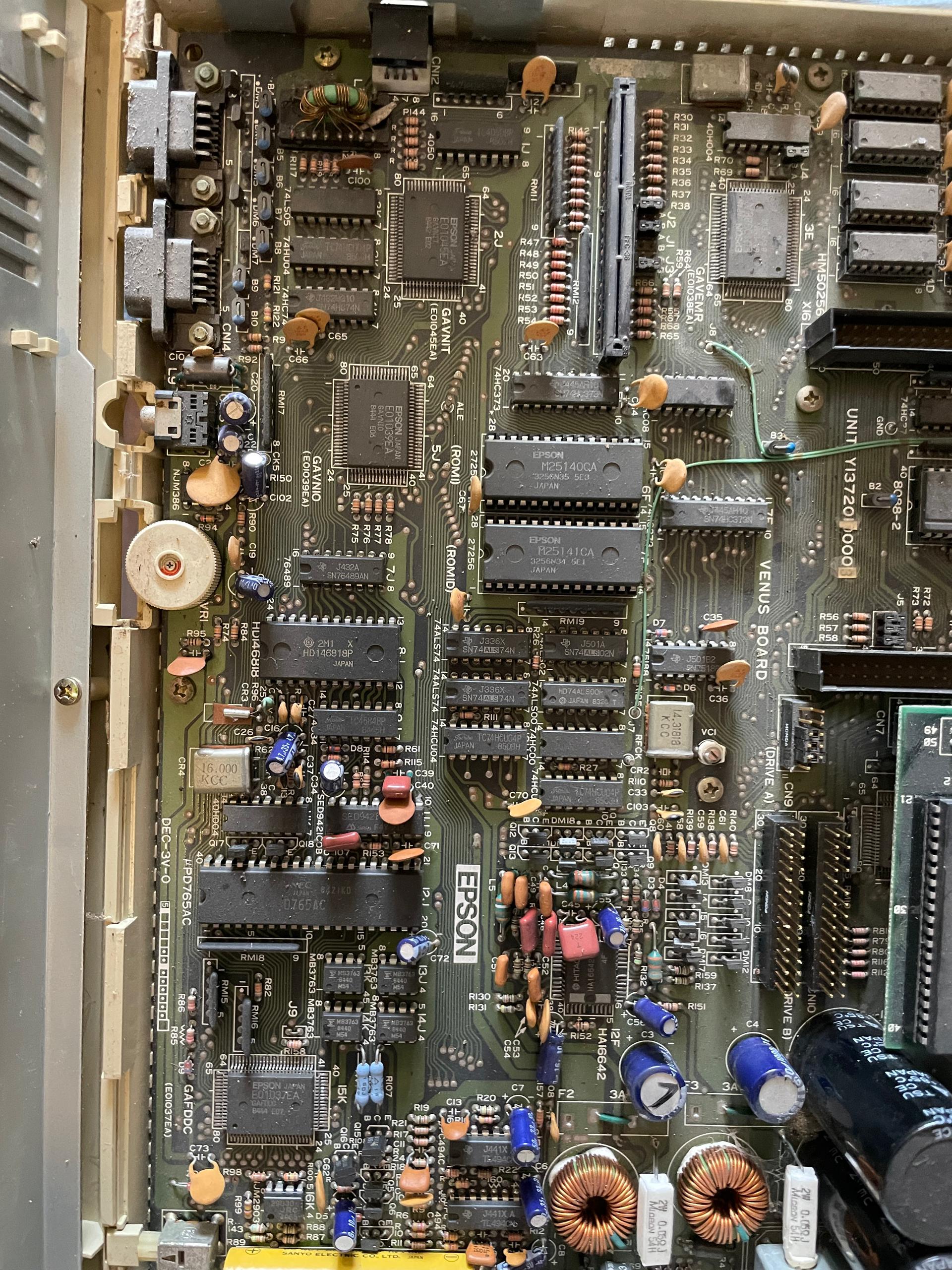

	MB GAFDDC D765 SED RTC SOUND

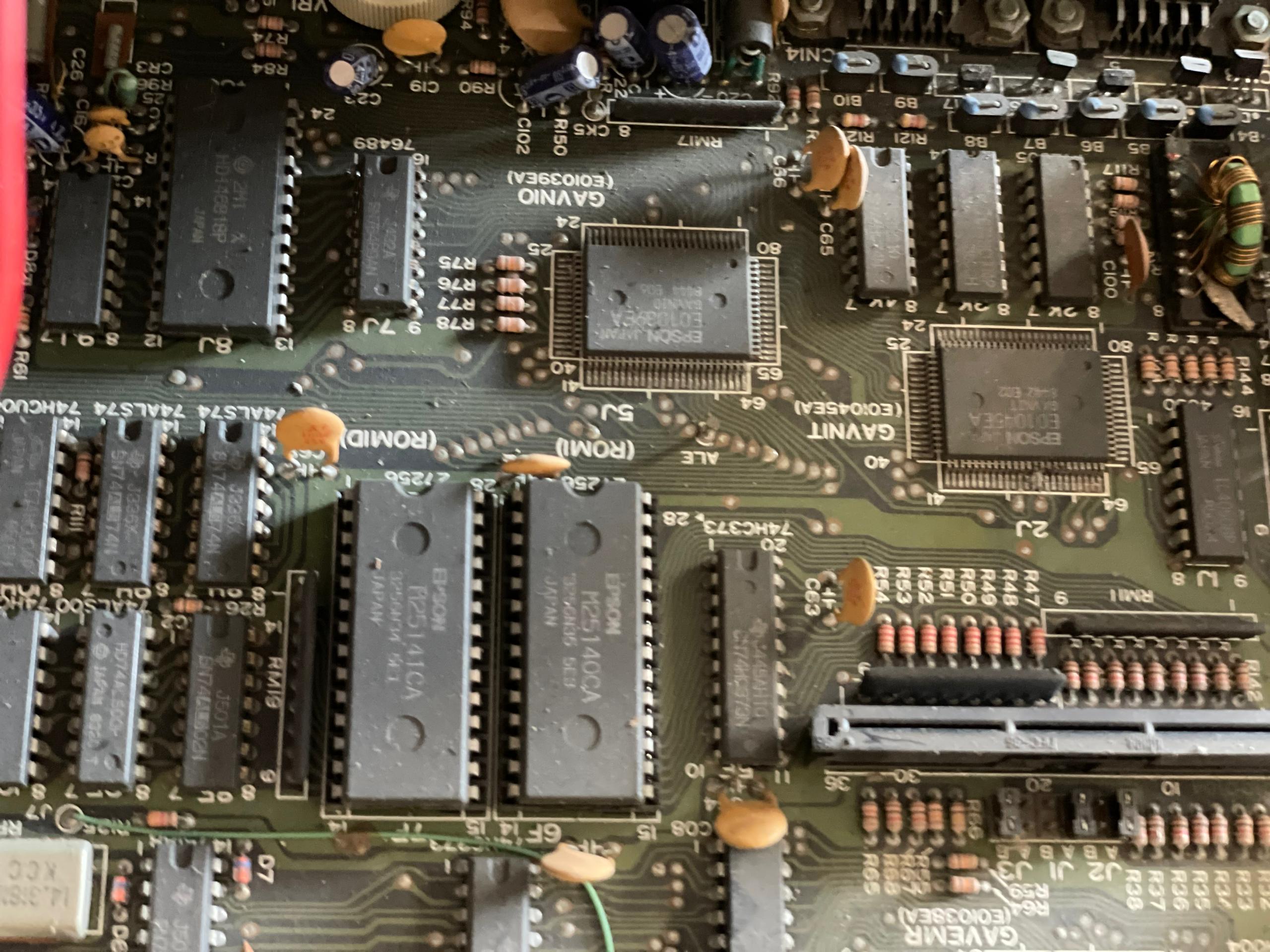

	MB ROM GAVNID GAVNIT 76489

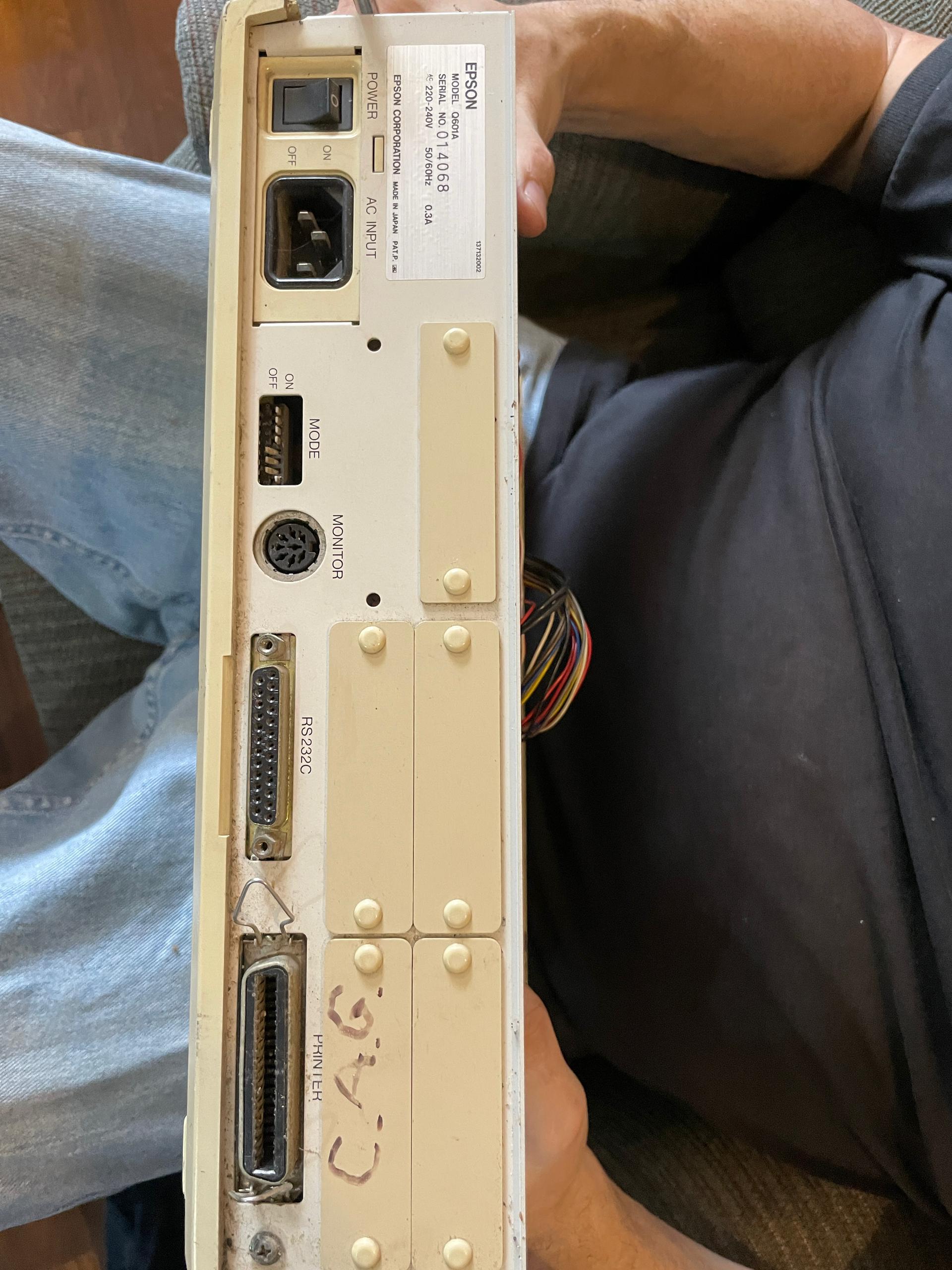

	QX11 BackSide

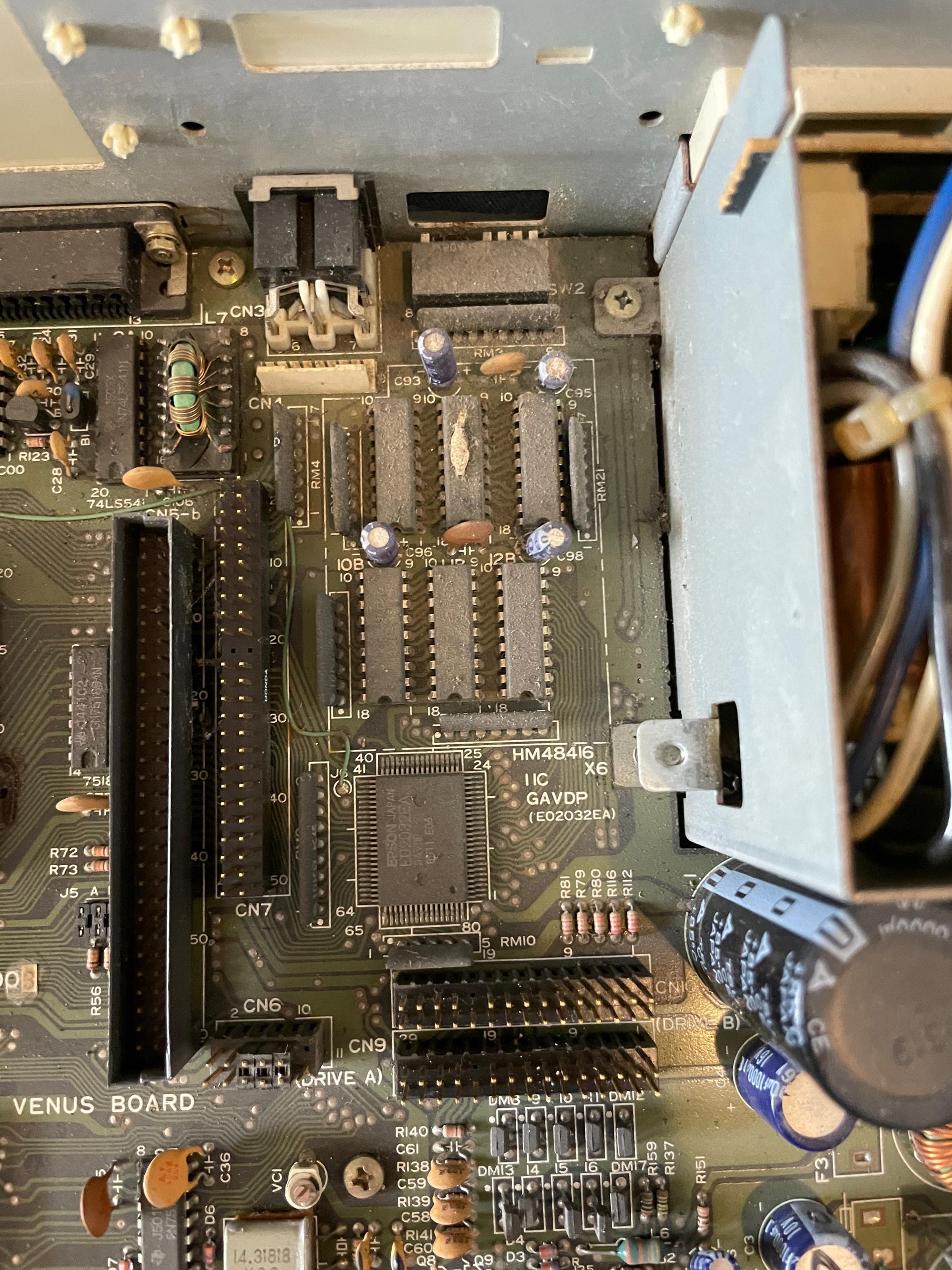

	MB GAVDP VRAM FD Connector

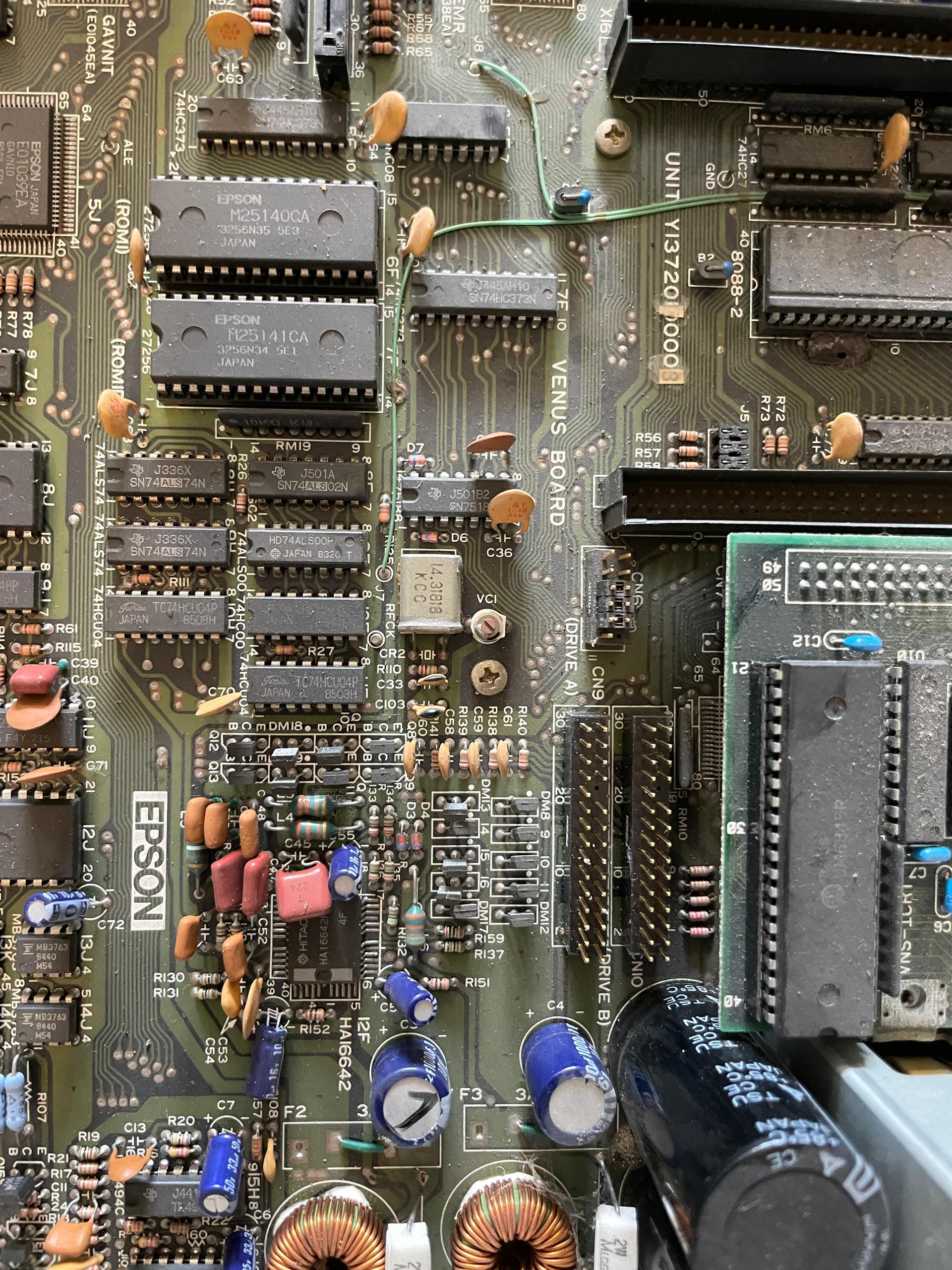

	MB ROM PSU

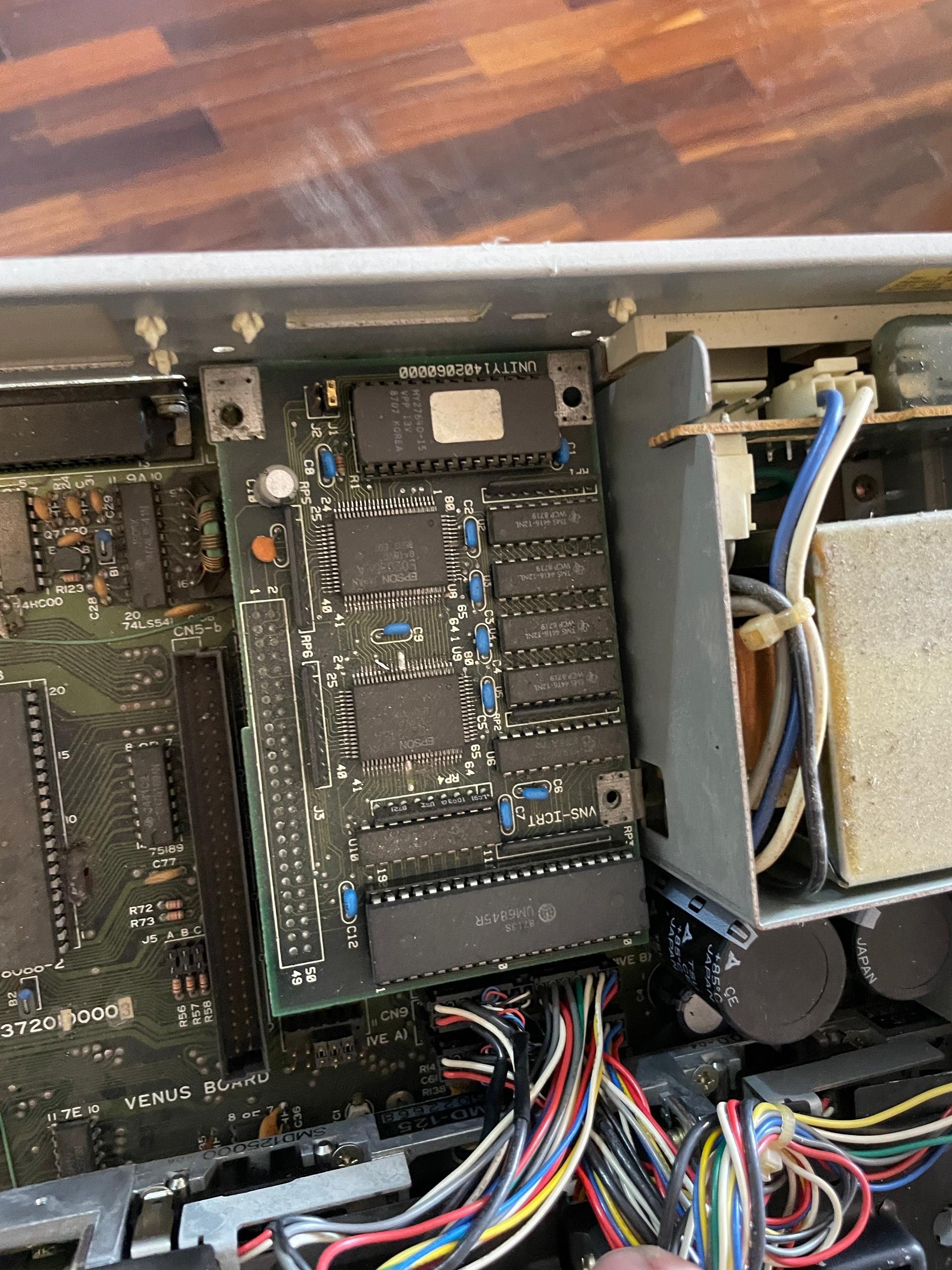

	VNS ICRT CGA CARD
